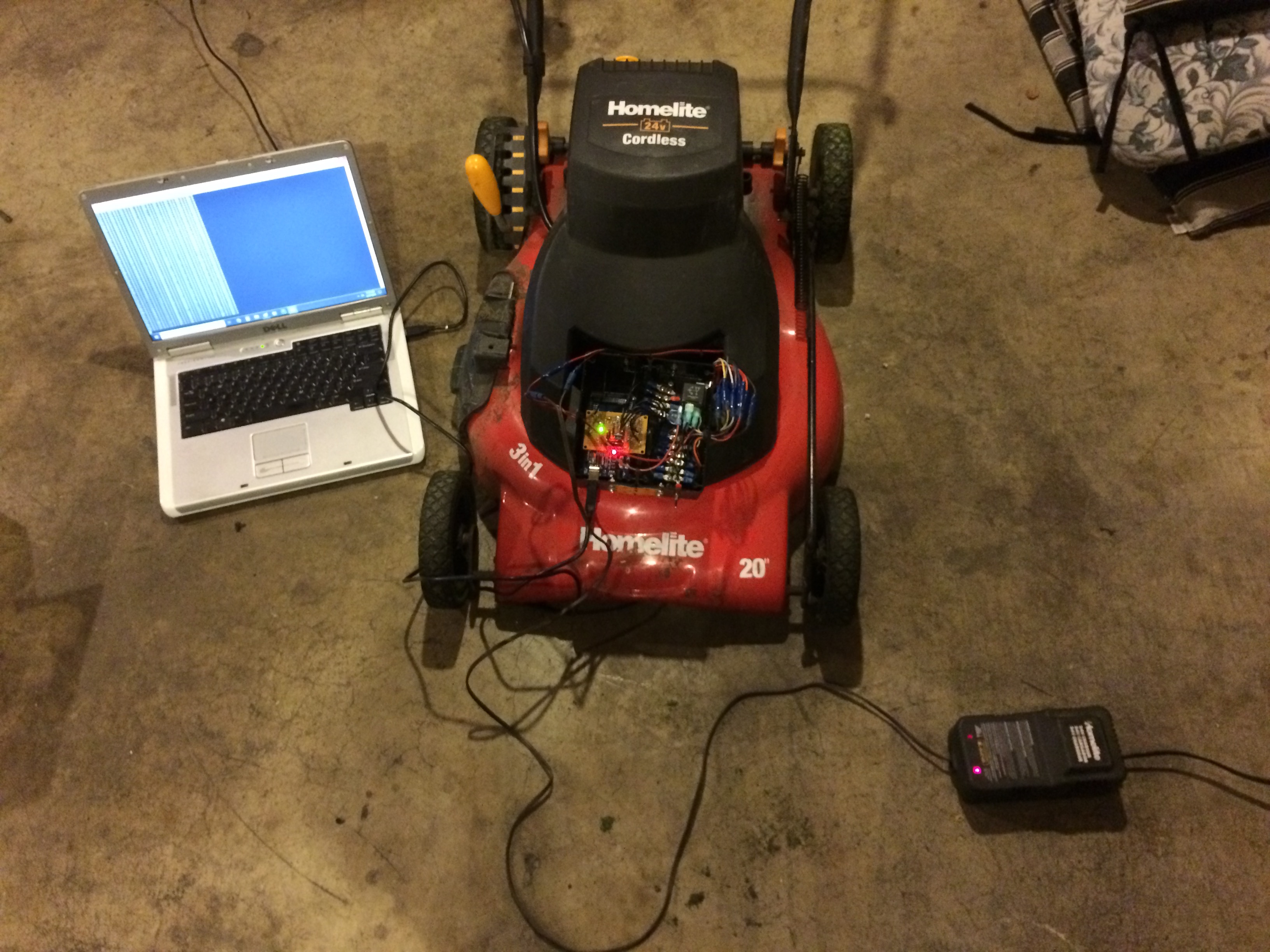

e-Mower_charging_direct_monitoring Posted on March 28, 2020 00:07:47.
LM7805 5V regulator Posted on March 22, 2020 23:42:57.
Download PDF File
Mendocino area EV charging stations Posted on February 16, 2020 08:52:54.
Download PDF File
SRHS Ecomarathon theory of operation notes Posted on February 06, 2020 08:25:47.
SRHS Ecomarathon Vehicle
Theory of Operation Notes
Chris Jones 2/6/2020
1. With battery pack X1 removed from vehicle, make sure main switch S1 and On switch S5 are both open, and Internal Kill switch S3 and External Kill Switch S4 are both closed.
2. Connect battery pack to vehicle.
3. Close switch S1. Wait TBD seconds until voltage across C1 is greater than 90% of the battery voltage. The precharge resistor R1 slowly charges up C1 to avoid excessive inrush current that could damage it. Max inrush current = 51V/5000 ohms= 10 mA (too low?), 51V^2/5000 ohms = 0.5W through resistor so use 1W. Ripple current requirement TBD. Capacitor ripple current spec TBD. This also provides a power path to the input of the DCDC converter, but the voltage drop through the precharge resistor prevents the DCDC input voltage good circuit from enabling the rest of the circuit so there will be no 12V DCDC output yet.
4. Hold down momentary Start switch S2. This temporarily provides full battery pack voltage to DCDC converter X2 which will produce 12V.
5. While continuing to hold down Start switch, close On switch S5. This energizes the power relay S6 which also provides full pack voltage to the DCDC converter. This also provides power to the deadman switch on the accelerator potbox X3, but the switch is normally open so the motor controller won’t start.
6. Release the Start switch. The power to the DCDC will remain on because its output is being backfed in to the power relay coil.
7. If at any time the motor controller needs to disabled, during an emergency or for storage, press the internal or external kill switch. This will depower the relay coil and the motor controller deadman switch will not have power input.
8. To drive, press the accelerator. This first engages the dead man switch which powers the motor controller board X4. This charges up C2 charge reservoir cap for the 555 timer U1 in TBD seconds, as well as charges up the Tau time constant cap C3 to 90% in 22 us = 2.2 x R4 100 ohms x C3 0.1 uF. Max inrush current 12V / R4 100 ohms = 120 mA. C3 max ripple current TBD.
9. The 555 timer chip powers up in to a random output state. The output of the motor control board controls the power FET Q1. When the output is high the FET turns on and connects the brushed DC motor X5 negative terminal to the negative terminal of the battery which causes current to flow and the motor to turn. The motor speed is controlled by Pulse Width Modulation, where the 555 timer takes the throttle hotbox resistance input and varies the amount of time Q1 is energized during a ~500 us period, running at ~2 kHz. Full throttle achieves 98% duty cycle, and no throttle is very close to 0% duty cycle. Here are the steps:
a. 555 main output pin 3 randomly turns on. Assume for this example it is high. 12V turns on Q1 at the gate which turns on at RC = 5150 pF gate capacitance x 33 ohms R5 gate resistance = 170 nS. The motor then starts to turn as the magnetic field builds up in the rotor coils driven through the brushes and commutator timed to repel the permanent stator magnets. This does happen instantly since the inductance in the coils resists change in current. It draws from C1 which is a low inductance path away so it does’t droop; if C1 wasn’t there the stiff voltage battery far away with lots of inductance in between would cause overshoot and ringing that could damage Q1.
b. DISC discharge output pin 7, the open collector inverse of output pin 3, is pulled low. This makes accelerator pot low diode D4 conduct and high diode D2 does not conduct. This connects the Tau capacitor C3 to DISC through the low side of the potbox resistor R2. When the accelerator is not depressed very far, this a very low resistance and C3 will be discharged quickly. As C3 voltage falls, it connected to both the threshold and trigger inputs of the 555. The threshold comparator flips from on to off as this voltage drops below 8V = 2/3 of 12V per the 3xR voltage divider in the 555 which resets the RS flip flop whose output drops to 0V. The output of the inverter is inverted twice so the Q1 gate voltage falls to 0 and turns off. The motor coil inductance resists current change and tries to generate a negative voltage spike, but D1 starts conducting at -0.7V and dissipates the current through heat until the magnetic field collapses. If D1 wasn’t there Q1 voltage would go very negative and be destroyed.
c. The is then inverted once and fed to DISC then inverted again and fed to the main output of the 555 which turns of the current to the motor. Then with discharge high D3 conducts and D4 doesn’t. This connects 12V to C3 via the 5K 10A limiting resistor R3 and the high side resistance of the hotbox resistor P2 which is almost 5K. C3 charges up with a time constant of RC = 10K x .1u = 1 ms, about 68% of the way up. When C3 voltage gets to 4V the trigger comparator goes high and tries to set the RS flip flop but it is still being held in reset by the threshold comparator. But once the C3 voltage gets above 8V the reset is removed and the RS flip flop turns on and repeats the cycle. So this should run at about 1 kHz. WHY ARE WE SEEING 2 KHZ?
Note: needs smooth acceleration control. A relatively simple op amp RC delay circuit between the throttle and 555 could be added, but it would also slow deceleration which could be a safety hazard. A strategically placed discharge diode could fix this, but the cap could still be charged too long after deenergizing and burn out the 555 or op amp when the deadman opens. This may be possible but no pre-existing robust design was found, so it would take some time designing, building and troubleshooting, which could add risk to ther schedule. Hopefully some combination of adding load and mechanical and electrical improvements will suffice this year. It appears that the best way to address smooth acceleration is to replace the 555 with a microcontroller. An auto-accelerate button on the dash and no potbox could be best for maximum effiency. A future microcontroller based swappable motor control board could be made next year, with an eye on eventually going to BLDC.
ADD MID AND FULL THROTTLE DESCRIPTIONS HERE
DISCUSS WHEN 555 POWERS UP OFF INSTEAD OF ON
ADD LOW, MID AND HIGH SCOPE TRACES AND REFER TO DUTY CYCLE AND VOLTAGE MARKERS, DESCRIBE BACK EMF SEEN
10. When done driving:
a. Turn On switch to off position. This causes a negative voltage spike across the S6 relay coil terminals that is suppressed by D2.
b. Turn Main switch to off position. C1 will slowly discharge through input of DCDC. MEASURE TIME AND DOCUMENT SO SAFETY IS UNDERSTOOD; ADD BLEED RESISTOR ACROSS C1 IF NECESSARY
c. Disconnect battery from vehicle to charge.
srhs_eco_schematic Posted on February 06, 2020 07:45:55.
SRHS Ecomarathon schematic notes Posted on February 06, 2020 07:43:39.
SRHS Ecomarathon Schematic Part List
CJ 2/6/2020
Known issues noted with a *, and questions with a ?. A material list with make, model, source, price and data sheets is probably required to pass technical inspection; generating this list may uncover more issues.
Components:
1. Fuses:
* F1 “Main”: 75VDC 10A; currently 30A, needs to be lowered to 15A
* F2 “Precharge”: 75VDC 3A; was 0.5A but would blow if someone accidentally hit the horn button while starting.
* F3 “DCDC In”: 75VDC 5A; new
F4 “On”: 25VDC 0.5A
F5 “”Horn”: 25V 3A
2. Switches:
? S1 “Main”: 75VDC 15A latching; what is make/model/rating? If upgrade needed can use 15A circuit breaker and eliminate F1.
? S2 “Start”: 75VDC 0.5A momentary; what is make/model/rating?
S3 “Kill int”: 25VDC 0.5A latching
S4 “Kill ext”: 25VDC 0.5A latching
S5 “On”: 25VDC 0.5A latching
* S6 “Power”: Omron G9EB-1-B-DC12 250VDC 25A contacts SPST NO sealed relay with 12VDC 72 ohm coil draws 167 mA; currently only 28VDC, need to upgrade; need to purchase for $117, https://www.mouser.com/ProductDetail/Omron-Electronics/G9EB-1-B-DC12?qs=M6j53hjKB4%2FPynp4bjS9BQ%3D%3D
S7 “Dead Man”: 25V 0.5A momentary, part of modified Curtis Potbox X3
S8 “Horn: 25V 3A momentary
3. Resistors, all through-hole:
R1 “Precharge”: 5K 2W
R2 “Accel pot”: 0 to 5K 3-wire, part of Curtis Potbox X3
* R3 “10A Lim”: 5K; need to add
R4 “Tau”: 100
R5 “Gate”: 33
4. Capacitors, all through-hole:
* C1 “Res1”: 1000u 100V; what is ripple current spec? How much ripple is needed?
* C2 “Res2”: 0.1u 25V; need to add
* C3 “Tau”: 0.1u 25V; what is ripple current spec? with no per charge it will see 12 mA.
C4 “Filt”: 0.01u 25V
5. Diodes, all through-hole:
D1 “Freewheel”: Vishay V2100SG 100V 20A
D2 “Relay coil suppression”: 1N4001
D3 “Hi potbox”: 1N4001
D4 “Lo potbox”: 1N4001
6. Power transistor Q1: Fairchild FDP060AN08A0 75V 80A 6milliohm through-hole
7. Integrated circuit U1: NE555 timer through-hole, socketed
Mechanical Parts:
8. PC board:
? MP1 through-hole perforated; dimensions?
9. Heat sinks:
MP2 power FET
MP3 freewheel diode
10. Terminal strips:
? Power MP4: 100VDC 15A; what is make/model/rating?
Assemblies:
11. Battery pack X1: BatterySpace custom 48V 10A 672Wh 14x4 LG MJ-1 LiFePO4 with cell bank V and module T BMS cutoff
* Battery order doc says 5 strings not 4, did that change? Needs 10A cell current protection or ~500W, is this too weak? Test vehicle with added R3 10A limiting resistor and determine if 0-20 MPH acceleration is adequate. Also need to figure out how to measure speed, maybe a bicycle speedometer? If not enough power, ideal would be 2x14 20A 7 Ah cells; if so then change F1 and S1 to 25A D1 to 30A.
12. DCDC Converter X2: Kohree B0756T983Q (rebadged Tobsun THJ4812C240Z) 48V in 12V 20A with 20A cutoff out no soft start, hence needs precharge, waterproof; could be as low as 4A
13. Pot Box X3: Modified Curtis PB6 with high side resistor wire added; contains S7 and R2 listed above
14. Motor Control Board:
? X4: contains R3, R4, R5, C2, C3, C4, D2, D3, U1, MP1, MP2 and MP3 mentioned above; please send bottom wire picture to post
15. Motor:
? X5: DC brushed 48V 1000W; did you get the ZXTDR U-TD010 from Amazon?
16. Horn
? X6: 12V 2A; which horn do you have?
Other items not shown on diagram:
17. Other terminal blocks
18. Wires: insulated - I think most are 300V, 12 gage for 10A power circuits, able to upgrade to 20A, but better than 14 ga due to less voltage drop and more efficiency. Low power should be 16 or 18 gage, no smaller for durability. Choose wire colors and add color and gage to drawing: red, yellow and orange typically used for power, black or green typically ground, blue, green, white or purple for signals. Suggest easy to obtain automotive wire from O’Reilly Auto Parts.
19. Wire terminations: use preferably ring, but quick disconnect or bullet OK. Do not use fork, they can slip out after slight loosening. Use yellow for 12 ga, blue for 16 ga. red for 18 ga
20. Fasteners to attach components to mounting board: screws, flat washers, lock washers (use everywhere including adding thin ones for terminal strips, vehicles shake things loose), nuts - lock nuts can eliminate lock washers
SpiceModel Posted on January 26, 2020 14:19:07.
Open Directory
Speedtest Posted on October 23, 2019 23:04:29.
Home Network Speed Test
10/23/2019
Hardware:
Sonic/AT&T optical fiber 50 Mbps up/down internet connection
AT&T BGW210 router and ethernet gigabit switch, WiFi off
Nether N600 router, WiFi off
~70’ cable to TPLink 8 port switch TL-5G108
~35’ cable to TPLink 5 port switch TL-5G105
Power Over Ethernet adapter
~7’ ethernet cable to Ubiquiti UniFi AP AC LR Wireless Access Point placed about 4’ up on top of a 4 drawer file cabinet, centered in single story 2,550 sq. ft. house which is centered on a 72’x116’ 0.19 acre lot rotated ~37 degrees off north-south; 68’ from each corner of the lot
Ran speedtest.net on iPhone 5S
Results - Mbps upload/download:
Outside:
North corner of lot: 1.77, 0.96
Front patio: 9.71, 8.48
East corner: .18, .04
South corner: x
Back patio: 4.61, 9.22 with WAP open; 25.0, 26.5 with bucket over WAP
Back lawn: x
West corner: x
Inside:
Master bedroom: 55.6, 28.9
West bedroom: 61.2, 60.5
East bedroom: 61.2, 62.7
Office: 61.1, 60.4
Living room: 10.30, 9.98
Dining room: 41.8, 30.3
Kitchen: 61.1, 61.4
Breakfast nook: 61.4, 61.0
Family room: 40.6, 33.8 with WAP open; 61.7, 51.7 with bucket over WAP
Garage with aluminum door open: 7.68, x
Garage with aluminum door closed: x
2019-09-22 e-Golf Drive SLO to Santa Rosa Posted on September 22, 2019 17:31:30.
e-Golf SLO to Santa Rosa
September 22, 2019
Left SLO with 31/32 capacity at 7:24 AM, 65 degrees, 20820 miles odometer reading. Drove the speed limit except between Paso Robles and King City and didn’t use air conditioning until after King City.
Fast charged in Paso Robles at Cool Hand Luke’s Steakhouse ChargePoint, 1111 Riverside Ave. 24 mi, 20849, 7:56 arrival, 35 mins to charge, started at 72%, ended full, no interruptions. Slower 25 kW charger. Got bagels and coffee at Oak Pass Cafe; dark roast was too bitter but decaf, latte, bagel and bagel sandwich were all good.
Hypermiled 100 miles between Paso Robles and Salinas to make sure we could stay above 20%. It’s 680’ downhill and there was no noticeable headwind, but just to be sure I drove 55 MPH to King City even in the 70 MPH section where there was almost no traffic so it was easy for the few cars to pass me. The slow chargers at King City at 615 Canal Street next to the decommissioned ChargePoint fast charger is 52 miles from Paso Robles, so we needed to be above 58% when we got to King City to skip using them; if we were below 58% we would need to charge the same amount above 58% assuming constant efficiency, but the wind speed could increase. But if we only used the slow charger to top up it wouldn’t add too much time. Say we came in at 48% so we had to charge to 68% or +20%, that would take about 1 hour at level 2 charge rate. But fortunately we arrived at 21/32 or 66% so we skipped it. The temp at 9:50 AM was only 79 degrees so not using air conditioning was OK. After King City the traffic picked up so I started driving the speed limit again to be safe. Arrived at Salinas fast charger at Nob Hill Foods EVGo, 1320 South Main St. at 10:44 AM with 34% capacity, ODO 20949. Took the Monterey Peninsula exit to get there. Note that this is higher than the 25% in the reverse direction 5 days earlier, but the other direction was started at 95% instead of 100% and was traveled at 65 MPH and was 680’ uphill so the latter two changes only made a 4% difference.
Determined that driving slowly does matter by setting the cruise control on a flat straight stretch, letting it stabilize, then writing down 10 instantaneous efficiency data points spaced 5-10 seconds apart:
55 PMH: 6.32 mi/kWh avg, 0.68 mi/kWh standard deviation, 226 mile range if driven steady from full with 35.8 kWh pack
60 MPH: 5.29 mi/kWh, 0.52 mi/kWh standard deviation, 189 mile range, 16% worse
65 MPH: 4.65 mi/kWh, 0.41 mi/kWh standard deviation, 166 mile range, 26% worse
70 MPH: 3.94 mi/kWh, 0.39 mi/kWh standard deviation, 141 mile range, 37% worse
Granted this is fraught with error such as slope and wind speed and accelerations make a big difference, so more study is prudent.
Fast charged at Milpitas Great Mall EVGo, 447 Great Mall Drive, 67 miles from Salinas, 12:42 PM 45% start, 98% end after 45 minutes. ODO 21016. Ate at Chipotle on the far side of the mall, took the whole 45 minutes to walk there and the restrooms and back. Lots of clothing stores.
Drove 97 miles home to Santa Rosa, arrived at ODO 21113 3:25 PM, 293 miles, 8:01 door to door vs. 4:30 hours minimum driving time at the speed limit with no traffic, but there was at least 0:40 of traffic slowdown at Gilroy, San Jose, Oakland and Novato, so with 2:05 charge time and 0:12 slower driving between Paso Robles and King City it probably would have taken 5:45 using gasoline stopping once for gas and bathroom and once for lunch. So we added about 2:15 to drive our 125 mile range EV. Worth every minute to me, given we did it without gasoline. I will prefer it in the future over gasoline if it is an optional trip such as going for a visit or seeing a show. We don’t need to rush. We kept ourselves busy eating and analyzing data, but we could bring books and computers and do homework or doodle or take a walk while charging.
2019-09-17 e-Golf Drive Santa Rosa to SLO Posted on September 21, 2019 17:39:03.
Santa Rosa to SLO, 9/17
Depart Santa Rosa
100%
Arrive in Milpitas
64 mi range
39%
5.1 mi/kWh
No AC (outside 65-75F)
Fast charge for 43 minutes, 19.9 kWh
Depart Milpitas
164 mi range
99%
Arrive Salinas
81 mi range
17/32
4.6 mi/kwh
AC 78F (outside 75-80F)
Slow charge for 25 minutes, 2.9 kWh
Fast charge for 24 minutes, 11.5 kWh
(fast charge started at 60%)
Depart Salinas
95%
Charger not working in King City
4.8 mi/kWh
AC 78F (outside 75-80F)
Arrive Paso Robles
33 mi range
25%
4.6 mi/kWh
AC 78F (outside 75-80F)
Fast charge for 10 minutes, 2.4 kWh, then fault
Fast charge for 16 minutes, 4.7 kWh
Depart Paso Robles
70 mi range
50%
Arrive SLO
40 mi range
1/4
